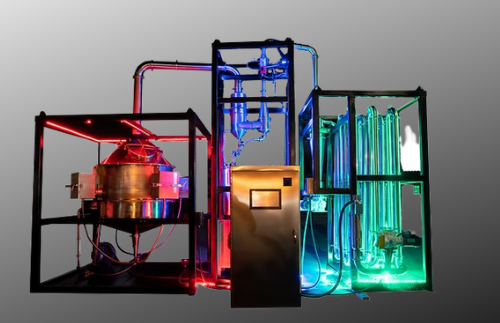

This system is composed of multiple system modules with installation and maintenance made easy by being on its own skid.
Heater / Contactor Module
Biomass is continuously introduced into a heated stream where the cannabinoids and terpenes are vaporized. The biomass is in contact with heat for only a few seconds. The biomass material is then separated from the vapor stream.
Water System Module
The vapor stream is shock-cooled and becomes a non-coalescing fog.
This module is the revolutionary aspect of the entire system. The cannabinoid/terpene fog is carried into a wet electrostatic precipitator, where an electromagnetic field pulls the cannabinoids/terpenes out of the fog for collection. The result is a high-quality concentrate that is then pumped from the system into a collection vessel.
This module consists of temperature, pressure, level, and many other sensors that are integrated using our proprietary software to allow automated processing and control of the other modules. Control information is presented to the operator in an intuitive screen for ease of operation. A single operator can operate even our largest system using this module.
The CIP module allows easy cleaning and sanitization of the majority of the system infrastructure without having to disassemble major components.
